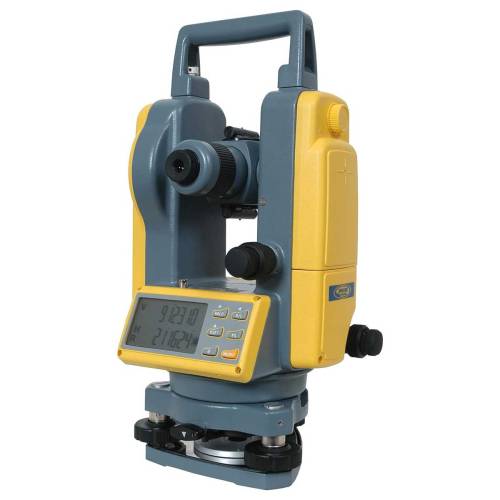

Our SETL Digital Theodolite is a high-quality instrument that is perfect for professional surveyors who require the most accurate and reliable measurements in the field. We design and manufacture this product as the best SETL Digital Theodolite Manufacturer in Uttarakhand, our theodolite features a large, easy-to-read display that provides real-time information on angles, distances, and other critical data.
It also includes a range of advanced features, such as a dual-axis compensation system that automatically corrects for errors caused by tilting, a built-in laser plummet that makes it easy to align the instrument with the target, and a wide range of measurement modes and functions that make it suitable for a variety of surveying tasks.
This instrument from Jafri Survey Instruments is also designed to be easy to use, with intuitive menus and functions that allow surveyors to get up and running quickly. It is water-resistant and dustproof, making it ideal for use in challenging environments. Apart from being a manufacturer and a supplier, we deliver our equipment and tools as the chief SETL Digital Theodolite Exporter in India.
It can be used to measure angles and distances, as well as to set out and align structures, mark out boundaries, and perform a wide range of other essential surveying tasks for applications in construction, engineering, and surveying.
Model | SDJ-02 | SDJ-05 |
Telescope | ||
Image | erect | |
Effective aperture | 45mm | |
magnification | 30X | |
field of view | 1o30' | |
Min.focuing distance | 1.3m | |
measuring method | raster | |
Min. reading | 1"/5" | |
accuracy | 2" | 5" |
Display | ||
type | Two-faced LCD , alphanumeric keyboard | |
Auto Vertical Compensator | ||
System | Auto vertical compensation | / |
range | ±3' | / |
Optical Plummet ( Optional - Laser Plummet) | ||
image | erect | |
magnification | 3X | |
field of view | 5o | |
Focusing range | 0.5~ | |
accuracy | ±1mm | |
Power supply | ||
Battery set | rechargeable battery | |
Battery Capacity | 1500mAh | |
Level Sensitivity | ||
plate vial | 30/2mm | |
Round vial | 8'/2mm | |
Laser System ( Optional) | ||
Laser wave lenth | 635mm | |
Laser power | 10nw | |
Working Range | -20oC~+50oC | |
Weight | 5kg | 5kg |
