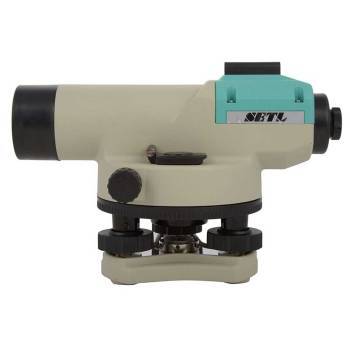

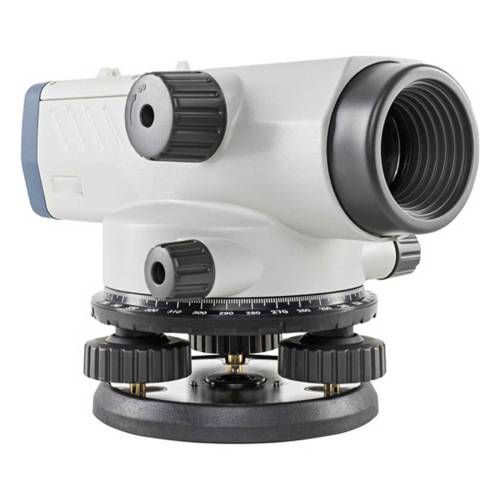

Setl Automatic Level AL

Setl Automatic Level AL Manufacturers

Having an elegant design, the Setl Automatic Level (AL) is appreciated for its user-friendliness and compact design. We are amidst the dependable, Exporters and Suppliers of Setl Automatic Level from Roorkee (Uttarakhand). Based on cutting-edge technology, this Setl Automatic Level model is appreciated for its high accuracy.

Features

  • With a distinctive style of exterior.
  • Improved structure of rack and gear avoids dislocation.
  • New setting of upper angle limitation make compensator repair easier.
  • Fixed optical lens setting gives a remarkable accuracy.
  • Integrated flat and domed base for easy-using

Technical Specifications

Parameter Model AL-20 AL-24 AL-28
Standard deviation for 1 km double-run levelling 2.5mm 2.0mm 1.5mm
Telescope image Erect Erect Erect
Magnification 20x 24x 28x
Clear Objective Aperture 30mm 36mm 36mm
Field of View 1o20' 1o20' 1o20'
Shortest focusing Distance 0.6m 0.6m 0.6m
Stadia multiplying constant 100 100 100
Stadia Additive Constant 0 0 0
Sensitivity of Circular Level 8'/2mm 8'/2mm 8'/2mm
Graduation Interval of Circle 1oor 1gon* 1oor 1gon* 1oor 1gon*
Compensator type X-shaped wire suspension air-damping X-shaped wire suspension air-damping X-shaped wire suspension air-damping
Working Range +-15' +-15' +-15'
Setting Accuracy 0.5 0.5 0.5
Dimensions 190x130x136mm 190x130x136mm 190x130x136mm
Weight 1.8kg 1.8kg 1.8kg
Connecting size to tripod M16 or 5/8 M16 or 5/8 M16 or 5/8
